Cast Resin Dry Type Transformers, Series SC(B)10

Products

Dry Type Transformer
1. Dry Type Transformers, Series SG(B)10
2. Cast Resin Dry Type Transformers, Series SC(B)10
Oil Immersed Transformers
1. Oil Immersed Transformers,Series S11
2. On Load Tap Changer，Series S11
Medium Voltage Switchgear
1. Secondary Switchgear，Series KYN28A-12
2. Ring Main Unit(RMU),Series XGN15-12
Unit Substation
1. Pad-mounted Transformer
2. Prefabricated Substations

Request A Quote

In you wish to request a quote to get pricing on our products,please write your information here.

Dry Type Transformer, Cast Resin Dry Type Transformers

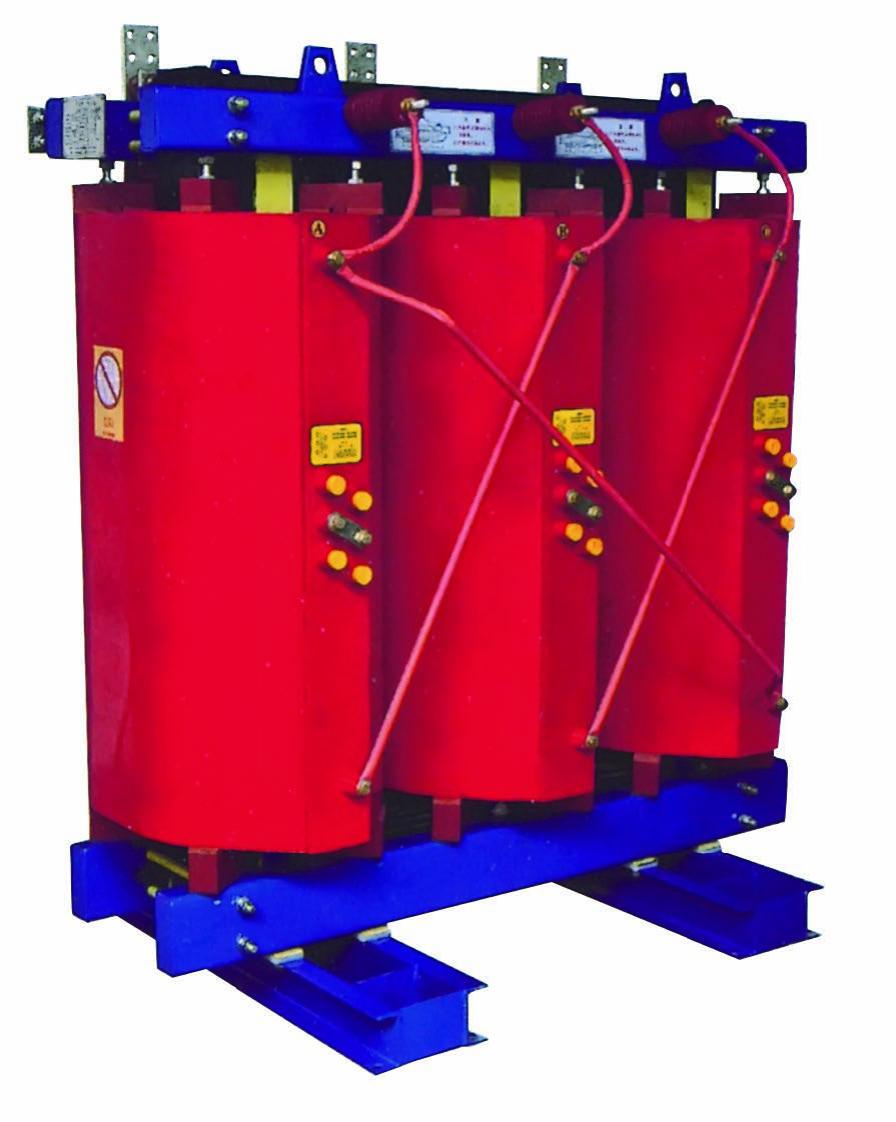

Series SC(B)10 dry type transformers are engineered for high efficiency power transmission. Epoxy resin is used as the transformer’s insulation material to encapsulate the core. Therefore, SC(B)10 transformers are encapsulated dry type transformers. The high and low voltage winding adopts copper strips (foil) and epoxy resin is cast and cured in a vacuum, forming an extremely strong fiberglass reinforced plastic structure. Vacuum on-load regulating switches are adopted and when the grid voltage fluctuates, the voltage of the transformers need to be adjusted to supply high quality and stable voltage. Cast resin dry type transformers are especially suited for high demand installations and locations with strict fireproof demands, such as commercial centers, airports, tunnels, nuclear power plants, ships, and oil fields.

Technical parameters

Model	UK %	No-load losses （W）	Load losses （120℃）（W）	LPA (AN)DB	Dimensions mm LBH	Dimensions mm M	Dimensions mm N	Dimensions mm I	Dimensions mm P	Dimensions mm K1	Dimensions mm K2	Overall weight (kg)	Low voltage terminal
SC10-30/10	4	190	710	42	880x460x862	400	400	300	160	263	223	440
SC10-50/10		270	1000	42	950x750x915	550	550	325	170	271	229	575
SC10-80/10		370	1380	42	1000x750x977	550	550	340	180	280	255	620
SC10-100/10		400	1570	42	1030x750x1020	550	550	350	190	293	260	830	(a)
SC10-125/10		470	1850	43	1050x750x1057	550	550	360	190	300	290	940
SC10-160/10		540	2130	43	1080x750x1147	550	550	365	190	295	295	1100	(a)
SC10-200/10		620	2530	43	1100x860x1185	550	550	370	200	295	295	1245	(a)
SC10-250/10		720	2760	43	1120x960x1262	660	660	380	200	300	300	1415	(a)
SCB10-315/10		880	3470	45	1200x860x1362	660	660	390	120	268.5	268.5	1450	(b)
SCB10-400/10		980	3990	45	1240x860x1195	660	660	425	120	263.5	263.5	1655	(b)
SCB10-500/10		1160	4800	46	1255x860x1195	660	660	430	120	269	269	1945	(c)
SCB10-630/10		1340	5880	46	1406x860x1280	820	820	480	135	336	336	2440	(c)
SCB10-630/10	6	1300	5960	46	1405x860x1260	820	820	485	135	320	320	2475	(c)
SCB10-800/10		1520	6960	48	1425x1020x1385	820	820	485	165	323	323	2990	(d)
SCB10-1000/10		1770	8130	48	1500x1270x1385	820	820	515	145	333.5	331.5	3395	(d)
SCB10-1250/10		2090	9690	49	1580x1270x1597	820	820	540	185	332	338	3520	(e)
SCB10-1600/10		2450	11730	49	1658x1270x1660	1070	1070	565	185	338	345	4165	(f)
SCB10-2000/10		3050	14450	50	1805x1270x1847	1070	1070	615	205	338	347	5545	(g)
SCB10-2500/10		3600	17170	50	1890x1270x2020	1070	1070	640	205	380	393	6670	(g)
SCB10-1600/10	8	2450	12960	49	1680x1270x1680	1070	1070	565	185	338	345	3720	(f)
SCB10-2000/10		3050	15960	50	1885x1270x1850	1070	1070	615	205	338	347	4920	(g)
SCB10-2500/10		3600	18890	50	1910x1270x2080	1070	1070	640	205	380	393	5900	(g)

Features

Low power loss, low partial discharge, minimal noise and strong heat dissipation capacity. They can work under 120% related load in forced air cooling conditions.
Good moisture proof performance. They can work normally at 100% humidity and can be put into use after stopping without pre-drying.
Safe, fire-proof and without pollution, they can be directly installed in high load centers.
Perfect temperature protection control systems are installed, providing a reliable guarantee for the safe operation of the transformers.
Integrated on-load voltage adjustable transformers with a compact structure, simplifying installation.
